Replacing kitchen cabinet doors requires precision measurements to avoid costly mistakes. A single millimeter’s error can create uneven gaps, misaligned hinges, or doors that won’t close properly. Whether you’re updating your kitchen’s appearance or replacing damaged doors, accurate measurements ensure professional results without the frustration of returns and remakes. This guide gives you the exact steps professionals use to measure kitchen doors correctly—no guesswork, no wasted time.
Many homeowners make the critical mistake of measuring existing doors instead of cabinet openings, leading to mismatched replacements. The difference between a beautiful kitchen refresh and a frustrating project comes down to understanding cabinet construction types and measuring systematically. Before you begin, clear your cabinets, gather proper tools, and prepare to record measurements methodically—your future self will thank you when the new doors fit perfectly on the first try.
Gather Essential Measuring Tools for Precision Results
Skip the flimsy fabric tape measure in your junk drawer—kitchen door measurements demand professional-grade tools. A 25-foot metal tape measure with both metric and imperial markings provides the accuracy needed for cabinet work. The metal blade won’t stretch like fabric tapes, preventing those frustrating “why won’t this fit?” moments. Look for one with clear, bold markings that remain visible even in less-than-ideal lighting conditions.
Include a metal straight edge at least 12 inches long to verify squareness of cabinet frames. A dedicated measuring notebook with grid paper helps maintain consistent formatting—write height before width for every measurement as industry standard dictates. Don’t forget a quality pencil with eraser; smudged or incorrect measurements can derail your entire project. For hinge positioning, a combination square proves invaluable for marking precise 90-degree angles. Having all these tools ready before you start prevents mid-measurement interruptions that lead to forgotten or mixed-up dimensions.
Identify Your Cabinet Overlay Type Before Measuring
Your cabinet’s overlay type determines how much door surface covers the frame and directly impacts measurement calculations. Full overlay doors conceal nearly the entire cabinet frame, leaving just a slim 2-3mm reveal around the edges. This modern style creates a seamless, clean appearance but requires precise measurements to maintain consistent gaps. Partial overlay doors, common in traditional kitchens, cover about half the frame width with a more prominent 6-10mm reveal visible around the door perimeter.
Inset doors present a different challenge—they sit flush within the cabinet frame rather than overlapping it. To identify your type, close a door and examine the gap between the door edge and cabinet frame. For full overlay cabinets, this reveal should be nearly identical on all sides. If the gap appears larger on the hinge side compared to the handle side, you likely have partial overlay construction. Measure the reveal width with your tape measure—this number becomes crucial when calculating replacement door dimensions. Write your overlay type prominently at the top of each cabinet’s measurement page to prevent confusion during ordering.
Measure Cabinet Opening Dimensions at Three Points
Never assume your cabinet openings are perfectly square—older kitchens especially suffer from settling and minor distortions. Measure the width at the top, middle, and bottom of each cabinet opening, recording all three values. Use the smallest measurement as your baseline dimension to ensure doors won’t bind against narrower sections. For height, measure left side, center, and right side, again selecting the smallest value to guarantee clearance.
Standard base cabinet doors typically range from 500mm to 720mm in height, while wall cabinets usually fall between 570mm and 720mm tall. Widths vary more dramatically—expect standard doors between 300mm and 600mm, though pantries and wider cabinets can reach 900mm. When measuring, hook your tape measure’s end firmly against one side of the cabinet frame and extend it straight across without angling. Read measurements at eye level to avoid parallax errors that occur when viewing the tape from an angle. Record each dimension immediately with millimeter precision—don’t rely on memory as you move between cabinets.
Calculate Exact Door Size Based on Overlay Requirements
Your overlay type determines how much larger your door must be than the cabinet opening. For full overlay doors, add twice your reveal measurement to both height and width dimensions. If your cabinet opening measures 560mm wide with a desired 2mm reveal, add 4mm to the width (2mm for each side) for a total door width of 564mm. Apply the same calculation to height measurements for consistent reveals all around.
Partial overlay doors require different math—typically adding just the overlay amount to each dimension rather than double. If your cabinet has a 300mm opening and you want 15mm of overlay on each side, your door width should be 330mm. Remember that most door manufacturers work in 5mm increments, so round your calculated measurements up to the nearest standard size. For cabinets with multiple doors, subtract your desired gap width (usually 2-3mm) from the total opening width before dividing by the number of doors. A 600mm cabinet opening with two doors and a 3mm gap between them would require two doors of 298.5mm width each.
Mark Precise Hinge Hole Positions for Perfect Alignment
Hinge hole placement makes or breaks door alignment—measure twice, order once. Standard hinge patterns position the first hole 100-120mm from the top and bottom edges of the door, with additional holes spaced evenly for taller doors. Measure from the door edge to the center of each existing hinge hole if replacing doors, recording both the distance from the edge and spacing between holes.
Most European cup hinges require a 35mm diameter bore hole drilled 22mm from the door edge, but verify this against your specific hardware. For two-hinge doors, mark positions approximately 150mm from top and bottom; for three-hinge configurations on tall doors, space them evenly with the middle hole centered vertically. Create a simple diagram in your notebook showing hinge locations with exact measurements—this visual reference prevents confusion when ordering or installing. If installing new hardware rather than matching existing hinges, consult your hinge manufacturer’s specifications for precise drilling requirements before finalizing door orders.
Account for Handle Placement and Door Gaps
Handle position affects both functionality and aesthetics—measure carefully to avoid drilling through existing holes or creating awkward grip points. Measure from the top or bottom edge to the center of the handle hole, and from the side edge to the hole center. Standard handle placement falls between 100mm and 150mm from the door bottom for base cabinets, and 150mm to 200mm from the top for wall cabinets, but customize based on your preference.
For cabinets with multiple doors, maintain consistent gap spacing between them—typically 2-3mm. Measure the total cabinet width, subtract the combined gap space (3mm for two doors, 6mm for three doors), then divide by the number of doors. Example: A 900mm cabinet with three doors needs two 3mm gaps (total 6mm), leaving 894mm to divide by three—resulting in 298mm wide doors. Verify these gaps with cardboard templates before ordering to ensure visual balance. Remember that thicker doors require slightly wider gaps to prevent rubbing when opening and closing.
Double-Check Measurements with the Reverse Verification Method
Prevent costly errors with professional verification techniques before placing your order. After completing initial measurements, remeasure each cabinet using the reverse method—instead of measuring from left to right, measure from right to left, and from bottom to top for height. This simple technique catches common directional measurement errors. Compare your reverse measurements against your original numbers; any discrepancies require a third measurement to determine accuracy.

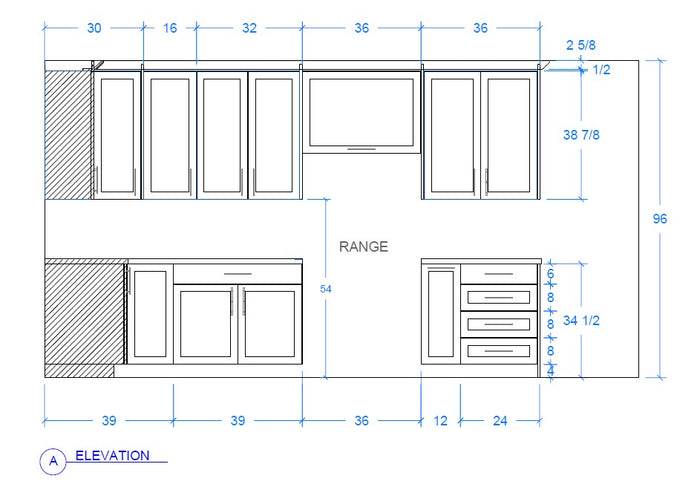

Create a final measurement matrix with cabinet location, opening dimensions, calculated door size, overlay type, and hinge positions. Take smartphone photos of each cabinet with your tape measure visible showing the critical dimensions—these visual references help suppliers spot potential issues. Many door manufacturers offer free measurement verification services; submit your matrix and photos for professional review before committing to an order. For complex kitchens with many cabinets, consider hiring a professional measurer for $50-$100—an investment that prevents thousands in replacement costs from incorrect measurements.
Avoid These Five Costly Measurement Mistakes
Kitchen door replacement projects fail most often due to preventable measurement errors. Measuring only existing doors instead of cabinet openings guarantees mismatched replacements when overlay styles differ. Assuming all cabinets match in size leads to frustration—kitchen cabinets often vary by several millimeters even in new construction. Recording measurements haphazardly without standard formatting causes confusion when ordering multiple doors.
Forgetting to account for hinge clearance results in doors that won’t close completely or rub against adjacent surfaces. Most critical: ordering doors before verifying measurements with cardboard templates—a simple step that catches errors before they become expensive mistakes. To avoid these pitfalls, measure each cabinet individually in good lighting, record dimensions immediately with millimeter precision, and verify with physical templates before finalizing your order.
Taking precise kitchen door measurements transforms what seems complex into a straightforward process. With accurate dimensions in hand, you’ll order doors that fit perfectly, creating a professional-looking kitchen refresh that enhances your home’s value and your daily enjoyment. The extra time spent measuring properly pays dividends when your new doors install smoothly and look exactly as you envisioned.
